JS2000 concrete mixer

Field of application: JS2000 Concrete Mixer is a machine that uses pressure to continuously transport concrete along the pipeline. It is composed of a pump body and a conveying pipe and is mainly divided into a gate valve concrete pump and S valve concrete pump.
WhatsApp:0086-18437125333
Equipment introduction

JS2000 concrete mixer is a kind of machinery which uses pressure to transport concrete along the pipeline continuously. It is composed of pump body and conveying pipe. It is mainly divided into gate valve concrete pump and S valve concrete pump, but according to the structure can be divided into Piston type, squeeze type, hydraulic diaphragm type, the pump body is mounted on the chassis of the car, and then equipped with retractable or inflecting booms, it forms a pump truck, which is mainly used in construction of houses, bridges and tunnels.

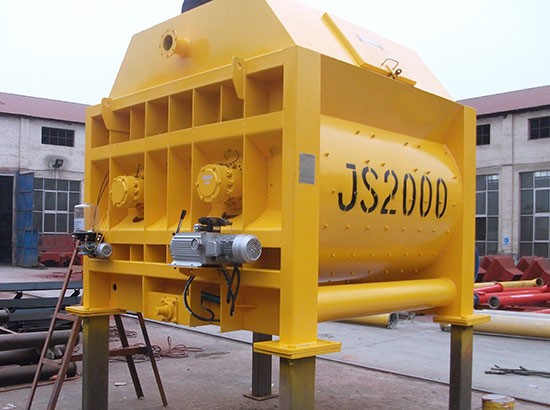

JS2000 concrete mixer
Product details

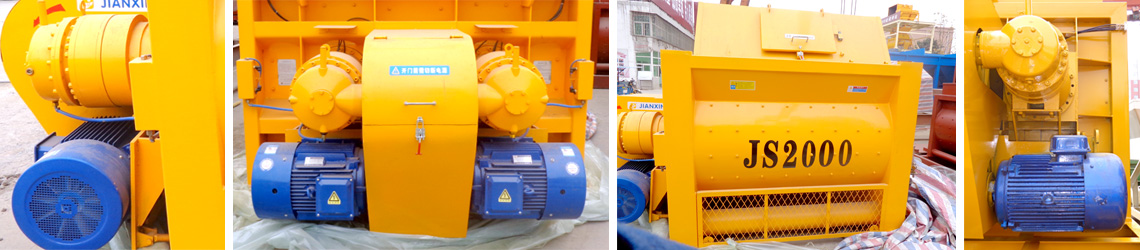

JS2000 concrete mixer Mixing system
The mixing system of JS2000 concrete mixer is composed of electric motor, pulley, reducer, open gear, mixing drum stirring device, oil supply device and so on. The motor of the JS2000 concrete mixer is directly connected to the cycloidal pin reducer. By means of the split gears, the two output shafts of the reducer drive respectively the horizontally arranged agitating shaft to reverse the rotation at the same speed.

JS2000 concrete mixer Mixing system

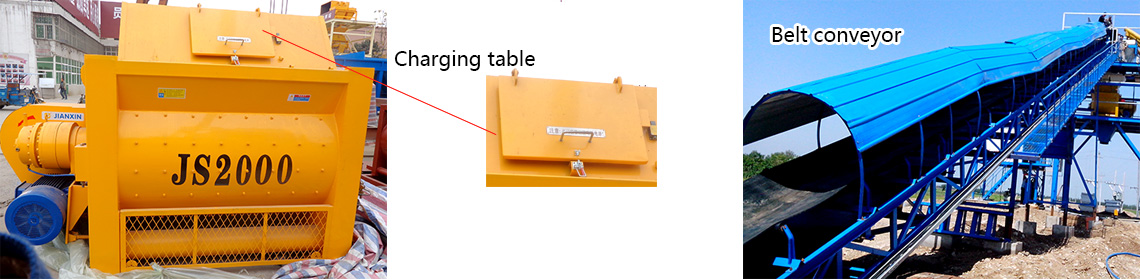

JS2000 concrete mixer Feeding system
The feeding system of JS2000 concrete mixer is composed of hoisting mechanism, loading rack, hopper feeding nozzle and so on. A limit switch is installed on the loading frame, and the upper limit has two limit switches, which respectively paly a role in raising the limit position and safety protection of the hopper with rise of the hopper. The upper part of the loading rack is foldable.

JS2000 concrete mixer Feeding system

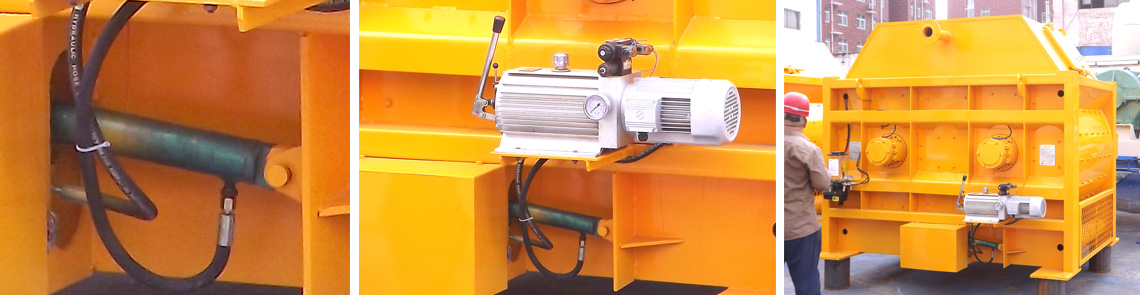

JS2000 concrete mixer Discharging system

JS2000 concrete mixer discharge system consists of unloading hopper, air pump, reversing valve, gas distribution valve, cylinder, electrical and other institutions.
The discharge door of JS2000 concrete mixer is installed at the bottom of the mixer, pneumatically discharged through the cylinder, and can also control the opening and closing position of the discharge door. The position of the sealing strip can be adjusted to ensure the sealing of the discharge door.
JS2000 concrete mixer Discharging system

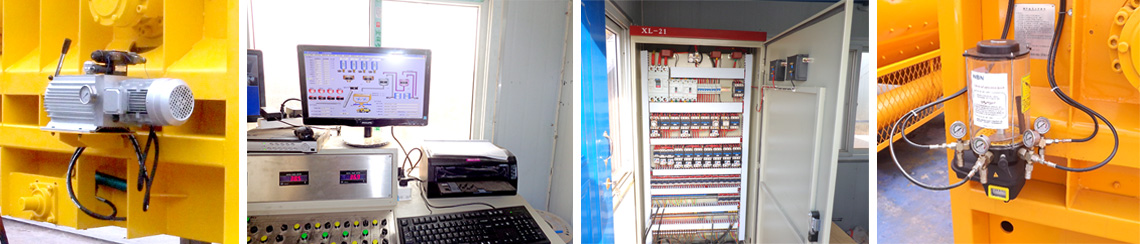

JS2000 concrete mixer Electrical System
The electric control circuit is equipped with an air switch, a fuse, and a thermal relay, and has the functions of short circuit protection and overload protection. All control buttons and air switch handles and indicators are placed on the distribution box door with a door lock. A protective cover is placed outside the button. The electrical components in the distribution box are mounted on a single edge plate, which is safe and reliable, and easy to operate and maintain.
JS2000 concrete mixer Electrical System
JS2000 concrete mixer Manual lever
The unloading manual operating lever of the JS2000 concrete mixer is used for unloading during temporary power failure and cylinder failure. It should be removed in peacetime to prevent injury.
JS2000 concrete mixer Manual lever
Technical Parameters
ProjectDischarge capacityFeed capacityTheoretical productivity

Maximum granule of aggregate

(Lithotripsy/Pebble)

Working cycle timePower of stirred motorSpeed of stirred motor

Shape size

(Length, width and height)

JS2000 2000L 3200L ≤120m³/h ≤80/100

60(S)

2×37KW

24.5(r/min)

3500×2400

×2125

Project Discharge capacity(L) Feed capacity(L) Theoretical productivity(m³/h)
JS2000 2000L 3200L ≤120m³/h
