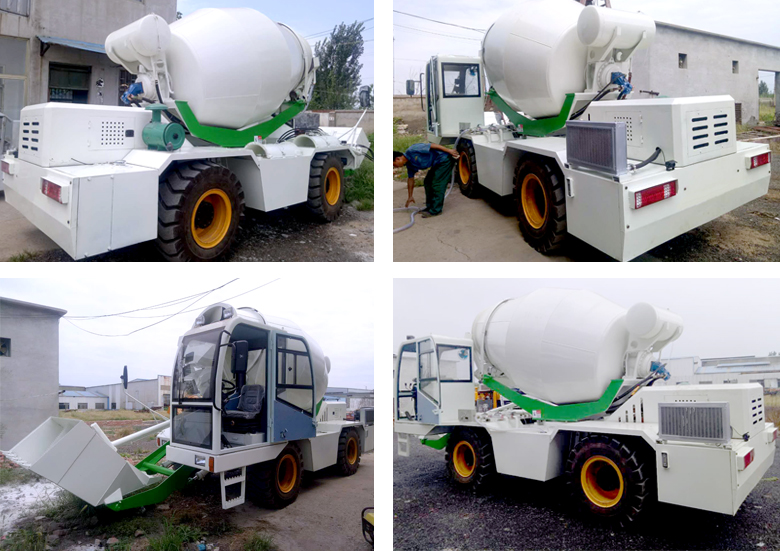

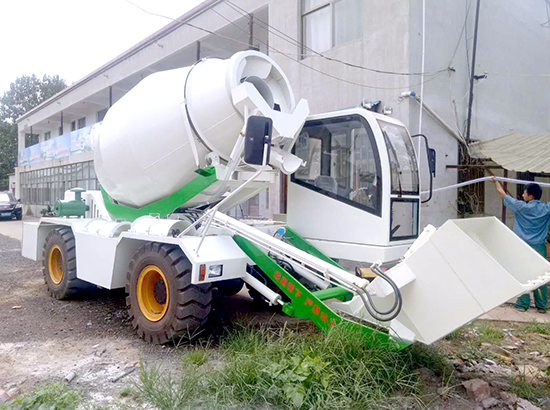

2.5 cubic meter self-loading mixer

Production capacity: 50m3
Total power: 92KW
Equipment model: HLZGD3-2000

Field of application: 2.5 Square self loading concrete mixer is a kind of concrete mixing equipment that combines the functions of a concrete transport truck and a concrete mixing station.

E-Mail:jianxin@zzjxcorp.com

WhatsApp:0086-18437125333

Get a Quote Chat Online

2.5 Square self loading concrete mixer is a kind of concrete mixing equipment that combines the functions of a concrete transport truck and a concrete mixing station. It is used for loading, metering, stirring, and discharging concrete, and can realize concrete transportation and on-site concrete construction operations. . The equipment greatly improves production efficiency and reduces production time and costs.

type	parameter
Chassis Model	HLZGD3-2000
Type performance	Mobile, self loading, mixing, transportation
Function	Wet (or dry) mixing of concrete, mortar, chemical fertilizer, feed and other bulk materials can unload the material to the destination.
Production function	Four wheel steering
Engine	Cummins 4 cylinder 2200 turn / minute, 92KW. cold turbocharging
Walking speed	22.4 km / h low speed 6.5 km / h
Oil consumption	Idle state 2L-3L, working state 6L-8L.
Wheelbase	2000mm
Wheelbase	1833mm
Tires	10.00－20（ Engineering machine tires ）4only
Agitator	The geometric volume was 5 cubic meters, and the mixing volume was 3 cubic meters.
Spiral blade in tank	The double helix is stirred together with the helix to make the stirring material more uniform. Left-handed material with right-handed material.
Inclination of stirred tank	16 degrees
Unloading tank	The height of discharge trough is 1.6 meters (extension), the parallel steering speed is less than 3 R / min, and the steering angle is 300 degrees.
Chute	The adjusting angle is matched with 3 side sliding grooves, which can be disassembled to increase the discharge length and adjust the angle hydraulic pressure.
A scraper bucket	600 liters of capacity
Shovel discharge	Hydraulic gate, electric control
Joystick	Electronic control button four guide handle
Walking hydraulics	Pump REXROTH (Italy Rexroth or homemade)
	motorREXROTH
	ReducerFX300
Water supply system	Water: hydraulic driven self suction pump. Rinse: high pressure water pump rinse
High pressure washing car	Electronic high pressure water pump flushing
Voltage	The battery is two 24V, 200A.
Hydraulic oil tank	Capacity 300 litres, summer 68 hydraulic oil, winter No. 46 hydraulic oil, cold area with 35 hydraulic oil. Equipped with a liquid level meter.
Tank volume	300L
Diesel tank volume	112L
Quality	Total quality 7000kg, total mass 14200kg
Shape size	The length of walking is 5400 wide and 2530 high by 4300
