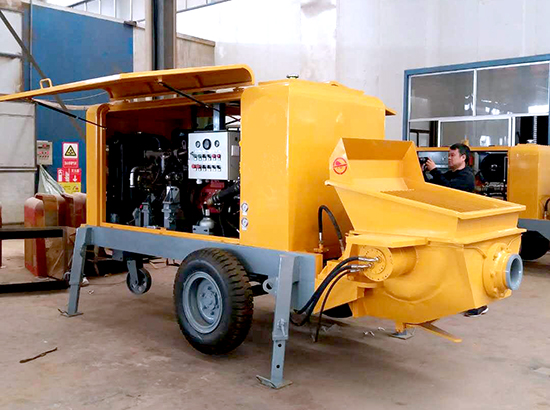

HBTS80-16 concrete pump

Field of application: The large-scale concrete pump HBT80B-16-110S is designed for high-rise buildings, bridges and other large-scale concrete projects with high construction efficiency and large output.
WhatsApp:0086-18437125333
Equipment introduction
The large-scale concrete pump HBT80B-16-110S is designed for high-rise buildings, bridges and other large-scale concrete projects,
with high construction efficiency and large output. Optional with a wire or wireless remote control device to facilitate long-distance operation;
proximity switch non-contact commutation to ensure reliable system commutation. The concrete transfer pump-HBT80B-13-90S adopts a three-circuit open hydraulic system.
The main pump has a constant power control and pressure cut-off device, so that the main pump can obtain multi-level reliability protection.
The centralized automatic lubrication system is adopted, and a pressure filter is provided at the outlet of the lubrication pump
to ensure reliable lubrication of the lubrication points.
HBTS80-16 concrete pump
Technical Parameters
Theoretical concrete output m3/h 90/54
Theoretical pump pressure MPa 16/9
Aggregate size mm Pebble≤50    Lithotripsy≤40
power KW Diesel engine174
speed r/min 2300
Pump cylinder bore / stroke mm ¢140/1800
Concrete cylinder diameter / stroke mm ¢200/1800
High and low voltage switching   yes
Tank volume L 500
Fuel tank volume m3 0.8
Hopper volume mm 1400
Theoretical transmission distance vertical / horizontal m 350/1600
Pipeline cleaning method   washing
Shape size (long x wide x high) mm 6200×2100×2260
Whole machine quality kg 6300
Theoretical concrete output m3/h 90/54
Theoretical pump pressure MPa 16/9
Aggregate size mm Pebble≤50    Lithotripsy≤40
power KW Diesel engine174
speed r/min 2300
Pump cylinder bore / stroke mm ¢140/1800
Concrete cylinder diameter / stroke mm ¢200/1800
High and low voltage switching   yes
Tank volume L 500
Fuel tank volume m3 0.8
Hopper volume mm 1400
Theoretical transmission distance vertical / horizontal m 350/1600
Pipeline cleaning method   washing
Shape size (long x wide x high) mm 6200×2100×2260
Whole machine quality kg 6300
Product advantages
1. The power system adopts a well-known brand motor with anti-pumping function, which facilitates the timely removal of plugging faults and can be stopped in a short time.
2. Optimized hopper, better suction.
3. Automatically centralized lubrication system to ensure the most effective lubrication during operation.
4. The imported Korean Kawasaki main oil pump saves energy and has good performance.
