Stabilized soil mixing plant integrated machine

Production capacity: 300t/h-400t/h
control method:Automatic/semi-automatic
>Total power: 75kw-95kw

Field of application: Stabilized soil mixing plant integrated machine is also called mobile stabilized soil mixing station with a special structural design, a control unit, batching system, mixing system, etc. are integrated into a transportation unit, from control, to weighing and then to agitation, and then to the last unloading all programs are here...

E-Mail:jianxin@zzjxcorp.com

WhatsApp:0086-18437125333

Get a Quote Chat Online

ZWB Integrated Stabilized Soil Mixing Plant equipment is a special structural design that integrates a control system, batching system, and agit,ation system into one transport unit. From the control, to the weighing and then to the agitation, all the procedures for the final unloading are Perform on this transport unit. Pulling or folding the device using the trailer traction can be easily moved and transferred.

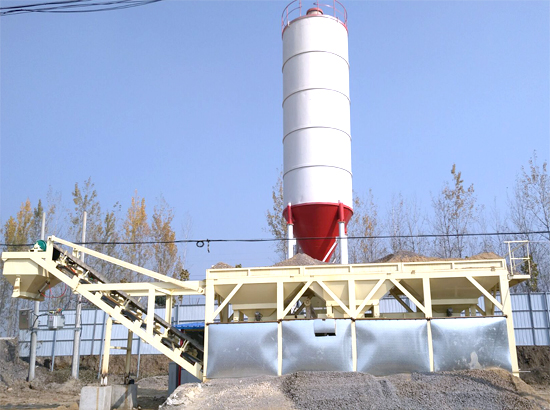

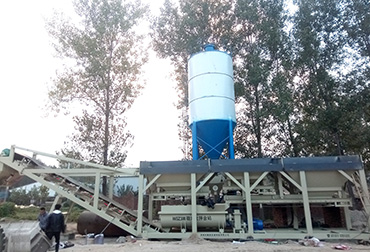

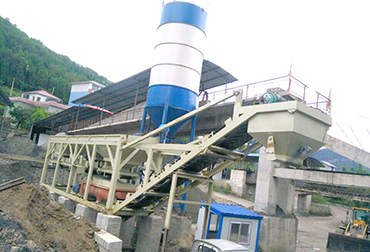

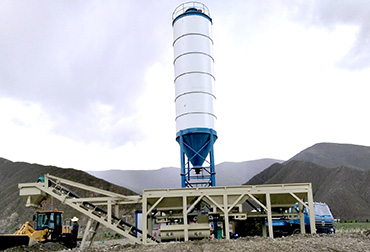

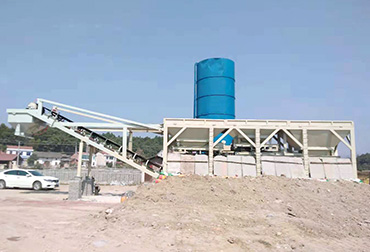

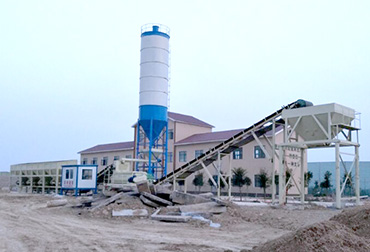

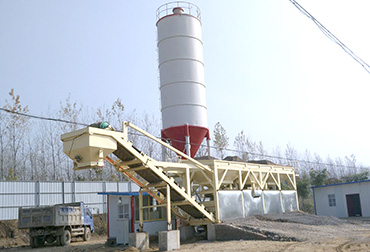

Anhui 400T Stabilized soil mixing Plant integrated machine
Guizhou 400T Stabilized soil mixing Plant integrated machine
Henan 500T Stabilized soil mixing Plant integrated machine
Heze 400T Stabilized soil mixing Plant integrated machine
Lasa 400T Stabilized soil mixing Plant integrated machine
Yueyang Stabilized soil mixing Plant integrated machine

Model		ZWB300	ZWB400
productivity（t/h）		300	400
Power（kw）		70	95
Overall weight （t）		12	14
Mixer	form	Non liner double lying shaft forced mixing	Non liner double lying shaft forced mixing
	Model	ZBG300	ZBG400
	Maximum aggregate（mm）	65	65
	Host power（kw）	2×22	2×30
Batching machine model		2×12m³	2×7m³+1×12m³
productivity（t/h）		13m×8m	13.5m×8m
Measurement form		frequency control、Full automatic control volume measurement	frequency control、Full automatic control volume measurement
Measurement form		Aggregate variable frequency speed regulation volume measurement, cement through buffer bin three sensors decrement, dynamic weighing, automatic control electronic measurement.	Aggregate variable frequency speed regulation volume measurement, cement through buffer bin three sensors decrement, dynamic weighing, automatic control electronic measurement.
Proportioning precision	Volume measurement	Granular material≤3%、Powder≤2%、water≤2%	Granular material≤3%、Powder≤2%、water≤2%
Proportioning precision	Electronic metrology	Granular material≤2%、Powder≤1%、water≤1.5%	Granular material≤2%、Powder≤1%、water≤1.5%

01

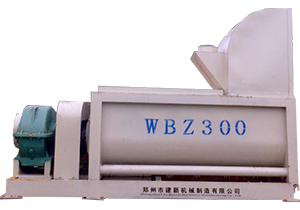

Mixer system
The main machine adopts a no-liners structure, which greatly increases the gap between the mixing blade and mixer drum;When the mixer working, a non-moving mixed material layer will be formed in the gap, which will stay on the drum, act as a lining board, protecting the mixer drum from abrasion.
03

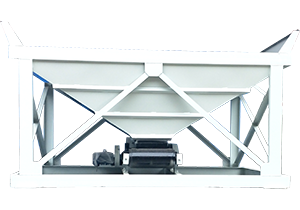

Batching system
Aggregate batching machine of WBZ600 stabilized soil mixing plant characteristics is as following:After aggregate storage hopper discharged, the raw material is conveyed by the flat belt conveyor. Electromagnetic speed regulating belt conveyor can realize stepless speed regulation.
03
Convey system

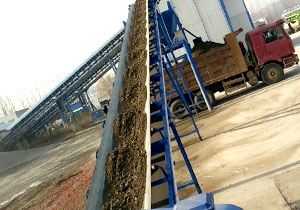

Screw conveyors can transport cement, fly ash, mineral powder, dry sand, etc., and are widely used in chemical, building materials, food, metallurgy, power and other industries.Belt conveyor is an ideal high-efficiency continuous material convey equipment. reliable operation.
04

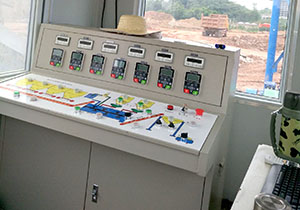

Control System
Control system adopt Domestic famous brand electronic accessories, using electromagnetic (frequency conversion) speed regulation method.WBZ600 stabilized cement soil mixing plant adopts computer control method, which automatically or manually modes are all availiable.
05

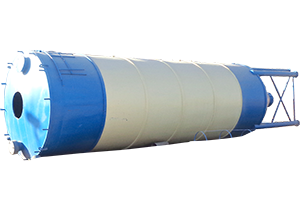

Cement Silo
Cement silo include three types: Bolted cement silo, Welding cement silo, and Horizontal cement silo.Integral cement silo has a cylindrical structure, the bottom is supported by four round steel pipe legs to support the entire silo body.
06
Dust clean system
There is an axial fan set on top of the pulse dust collector. When the axial fan works, negative pressure is formed inside and outside the dust filter bag. Air passes through the pores of the dust bag and is discharged into the atmosphere through the axial fan. The dust is blocked by the dust bag and attached to the dust bag.
